Patent 7,151,332 (PCT Filed)

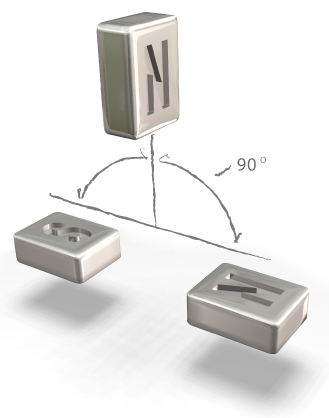

The key to our future is efficiency and that is where this new technology has an important role to play. Using the power of the magnet, our new technology has endless applications and could conserve billions of dollar in energy. It's straightforward, simplistic design allows for great versatility. This frictionless, magnetic coupling transfers rotation to reciprocation and vice versa. By aligning the magnetic fields in a perpendicular geometry, we can efficiently leverage the energy stored within the magnets. Regardless of size, shape, strength, or whether made from plastic or rare earth, the effect remains the same. The magnetic cog works by equal and calculable constants of repulsion and attraction between magnets.
  • FRICTIONLESS Magnetic Cog / Gear
  • Reciprocation causes Rotation and Vice Versa
  • RPM and Reciprocation can be Controlled
  • Runs Clockwise & Counterclockwise
  • NO HEAT is Generated by the Interaction
  • Isolated Components
Cog

Stage 1: The reciprocating magnet is aligned perpendicularly between two rotor magnets. The rotor magnets are pushing on both sides of the reciprocating magnet.

Stage 2: A linear motion of the reciprocating magnet will cause the rotor magnets to rotate about their shared axis to align with opposite poles. The rotation of the rotor will pull / push the reciprocator.

Gear

Placing a duplicate rotor above the reciprocating magnet creates a geared effect between the magnetic fields (this can also be done using a duplicate reciprocator as shown below).

Diagram 1 Two Rotors and one Reciprocator
Diagram 2 Two Reciprocator and one Rotor
The unique and simplistic design allows for limitless expansion. You can add multiple rotor and reciprocator magnets to increase torque and/or push - pull force.

Magnetic Connection Between
Oscillation & Rotational Frequencies
The magnet has been the cornerstone of the modern world. Until now without an electromagnet, magnets can do little more than hold items on your refrigerator. The Kundel Magnetic Coupling device has changed all that. The powerful energy stored within today's magnets can now be utilized. It is obvious this exciting new technology can be used with any linear or rotational movement. Take for instance transforming the oscillating energy of the oceans to produce clean renewable electricity.
Wave Generator simple superior design with isolated components, offshore and onshore (scalable: massive to nano).







VIDEO 1   VIDEO 2
The video shows the Motor stripped down to its key component: the FRICTIONLESS Magnetic Cog / Gear. A drill is attached to its axle to show Synchronized Reciprocation to the Rotors Rotation
(Reciprocation causes Rotation and Vice Versa)

The video shows the Motor with the 11" fan blades mounted on the axle running at 980 RPM (+/-)
PART ONE: AC Amps - PART TWO: AC Volts

.62 AC amp X 8.45 volt = 5.3 WATTS
Kundel Motor

The Motor's Three Parts: (Left) Four Brush Commutator. (Middle) Kundel Magnetic Coupling Device (Right) Voice Coil
The commutator is attached to the axle that controls the voice coil: the axle rotates, changing the polarity to the voice coil, which causes reciprocation.

Images: Motor's Magnets & Voice Coil
Over 980 RPM's Pulsing 5.3 watts with 11" Fan blade.
RPM
AC Amps
AC Volts
Watts
Work
2156

0.30
9.43
2.83
NONE
981
0.62
8.45
5.24
11" Fan
519
0.45
5.96
2.68
11" Fan
331
0.39
4.52
1.76
11" Fan
479
1.04
11.38
11.84
15" Fan
11" fan mounted on the Kundel Motor - 980+ RPM pulsing 5.3 watts through the Voice Coil
Operating Temperature only - 101° Fahrenheit. By contrast, the 11" fan blades mounted on the motor that it came on when purchased - 1,050 RPM, 24 watts operating temp 148°F.

Note: Power ON for only 60% of each Rotation. RPM increase by Volts to the Voice Coil.

The NEW Production Motor will be a fraction of the size and weight, made from plastics and composite material

This is the second prototype motor. It is example of how the Kundel Magnetic Coupling device can be utilized. The motor's efficiency surpasses all our expectations. For a comparisons, look at the amount of copper wire used for the work performed versus a typical motor. This simple motor was built to show two very important characteristics of the magnetic coupling:
  1. The efficiency of the energy transfer from reciprocation to rotation.
  2. The size and shape of the magnet does not matter, the link remains the same.
